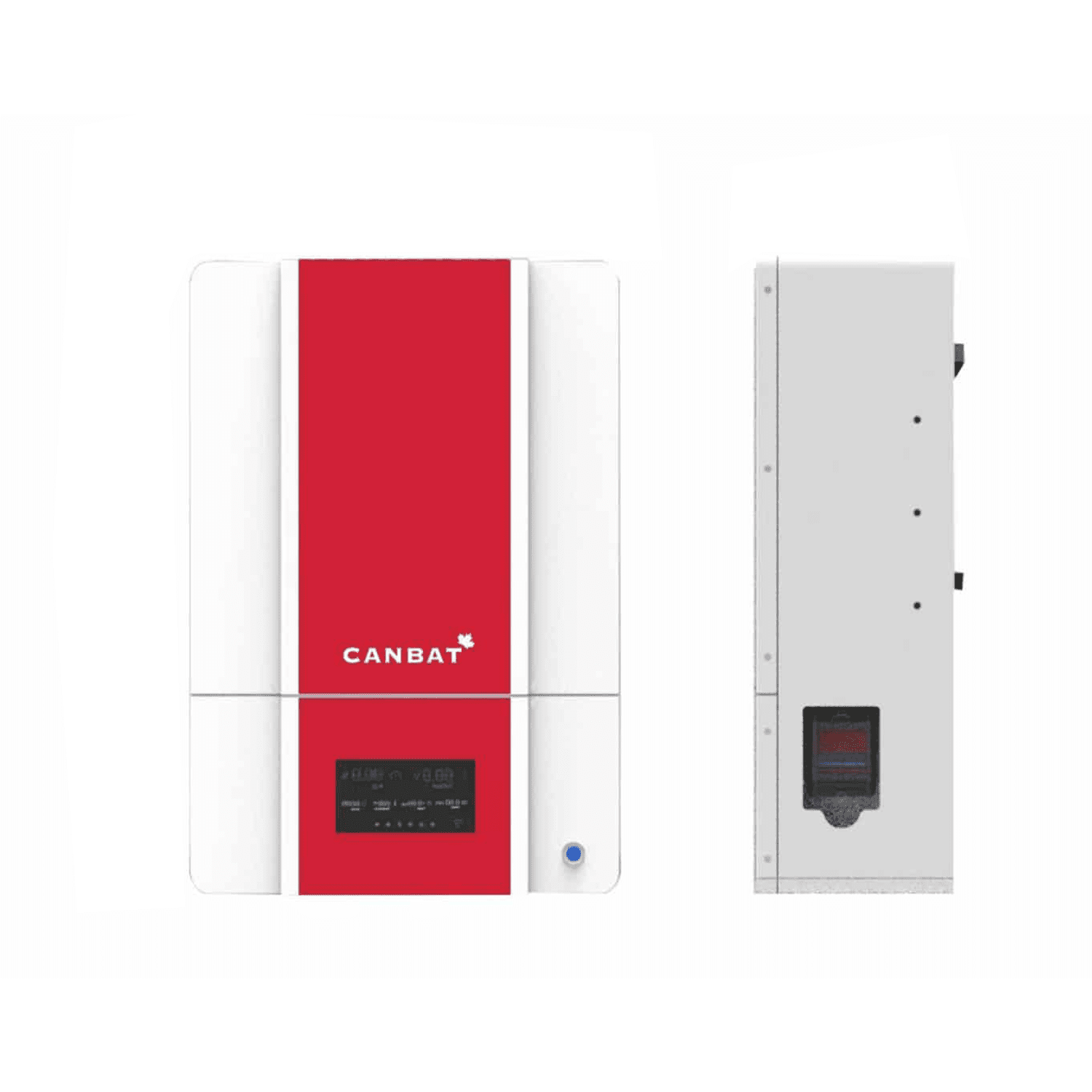

Wall-Mounted 120Ah 48V Lithium Battery
This unique 48V LiFePO4 battery has a built-in battery monitor and remote wifi monitoring. Download the Canbat WIFI app from the App Store or from Google Play. The battery is designed for stationary deep cycle applications, such as backup power and off-grid solar energy storage systems (ESS). The CLI120-48 is built with UL1642 certified prismatic LiFePO4 cells to ensure the best performance and reliability energy. The battery is also cUL1973 certified for use in stationary and motive auxiliary power applications in Canada. This 48V lithium battery can be used for backup power energy storage or as a main power source. LiFePO4 batteries can be fully discharged without loss in longevity. Canbat 48V 120Ah lithium batteries are popular in off-grid systems in residential, commercial and recreational properties. The CLI120-48 Lithium Iron Phosphate battery can withstand up to 6000 charge/discharge cycles at a depth of discharge of 80%. The CLI120-48 battery is commonly referred to as:
- 120Ah 48V solar lithium battery
- 120Ah 48V off-grid lithium battery
- 120Ah 48V backup power lithium battery
- 120Ah 48V RESS lithium battery
Top 10 Features of the 120Ah 48V LiFePO4
- Premium LiFePO4 cells UL1642 certified
- Wall-mounted design with an included mount
- Improved performance in various climate conditions
- Large wiring access panel offers more space for making connections
- Integrated inverter communications (CAN & RS485)
- Sol-Ark Inverter
- Victron Inverter
- Schneider XW Pro Inverter
- Built-in monitor and WiFi monitoring
- Long cycle life (up to 6000 cycles at 80% DOD)
- High charge current of 120 A
- High discharge current of 6 KW
- Supports up to 14 modules in parallel (86 Kwh)
48V LiFePO4 Battery Applications

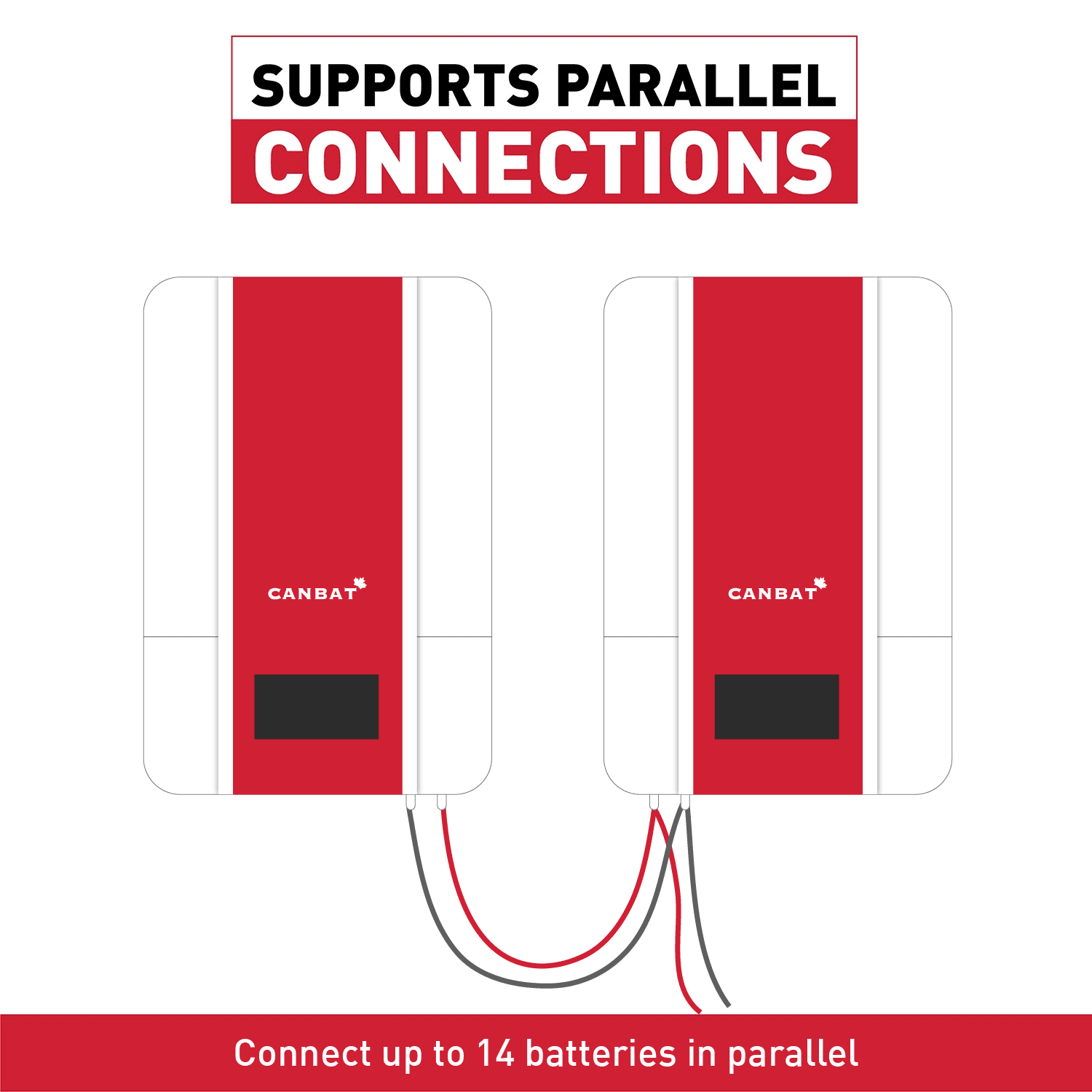

This 48V LiFePO4 battery cannot be connected in series for higher voltage configurations. The CLI120-48 is only designed for 48V applications. However, this 120Ah 48V LiFePO4 battery can be connected in parallel up to 14 units of the same model to create a 48V 240Ah, 48V 360Ah, 48V 480Ah, 48V 600Ah, 48V 720Ah, 48V 840Ah, 48V 960Ah, 48V 1080Ah, 48V 1200Ah, 48V 1320Ah,48V 1440Ah, 48V 1560Ah and 48V 1680Ah lithium battery bank.
|Part Number: CLI120-48|
|Length: 465 mm (18.31 inches)|
|Width: 220 mm (8.66 inches)|
|Battery Height: 685 mm (26.97 inches)|
|Approx Weight: 65 kg (143.3 lbs)|
|Download Product Specifications|
Canbat 48V 120Ah Lithium Iron Phosphate batteries (LiFePO4) are designed to outperform traditional sealed lead-acid batteries in various residential and commercial power applications. Lithium iron phosphate batteries offer safe and worry-free energy in a lighter-weight solution. Compared to sealed lead-acid batteries and other types of lithium batteries, Canbat lithium iron phosphate batteries are designed with LiFePO4 technology to offer significant advantages, including improved recharge and discharge efficiency, temperature protection, a higher life cycle and the ability to deep cycle or deep discharge while maintaining power. 120Ah 48V LiFePO4 batteries are generally more expensive than the counterpart sealed lead-acid batteries, but they are actually more cost-effective in the long term because they offer an extended life span of over 10 years.
The CANBAT WIFI monitoring app allows you to remotely monitor lithium batteries from any IOS or Android device. All you need is an internet connection. The app allows you to monitor the state of charge, charging current, discharge current (load), temperature, cycle life and more. The app also keeps a log of all activities to help you understand battery performance. The lithium Wifi monitoring app also notifies you when the battery requires your attention, such as when the temperature drops.
120AH 48V LITHIUM IRON PHOSPHATE BATTERIES APPLICATIONS
- Renewable energy
- Reserve power
- off-grid solar systems
Canbat is the number one 48V lithium battery Canada supplier and we are the only company offering free shipping across the country. Got a question? You can contact us either by email or phone for customer support. Our lithium battery experts are available to help support you with any technical questions you may have about our CLI120-48 model or any of our other LiFePO4 batteries.
