Description

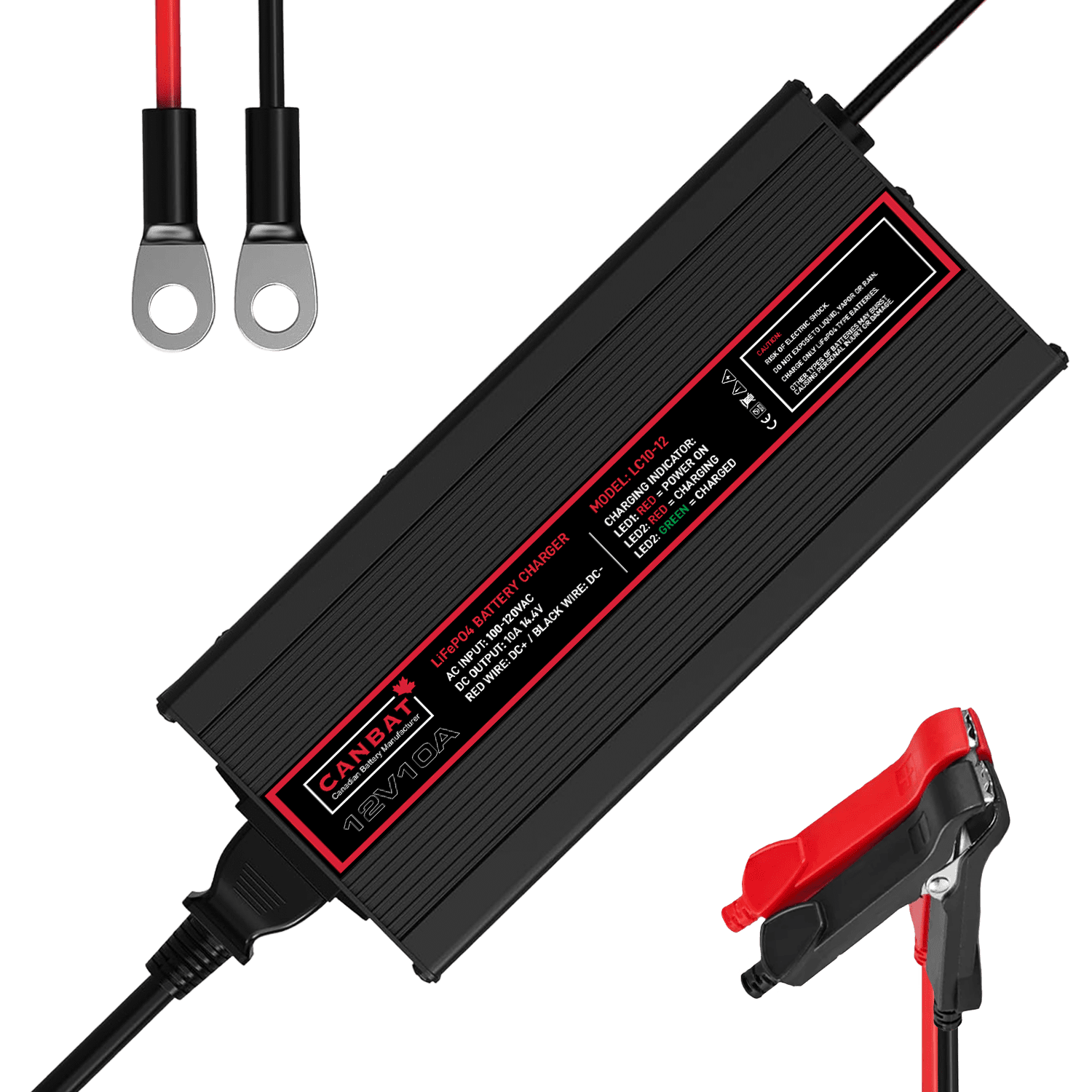

12V 10A Lithium Battery Charger (LiFePO4)

Name: 12V 10A Lithium Battery Charger (LiFePO₄)
SKU: LC10-12
Price: 159.00 CAD
Availability: InStock

Compact IP22 smart 12V 10A lithium battery charger designed in Canada and available in 120V.

DESIGNED SPECIFICALLY FOR LIFEPO4 BATTERIES

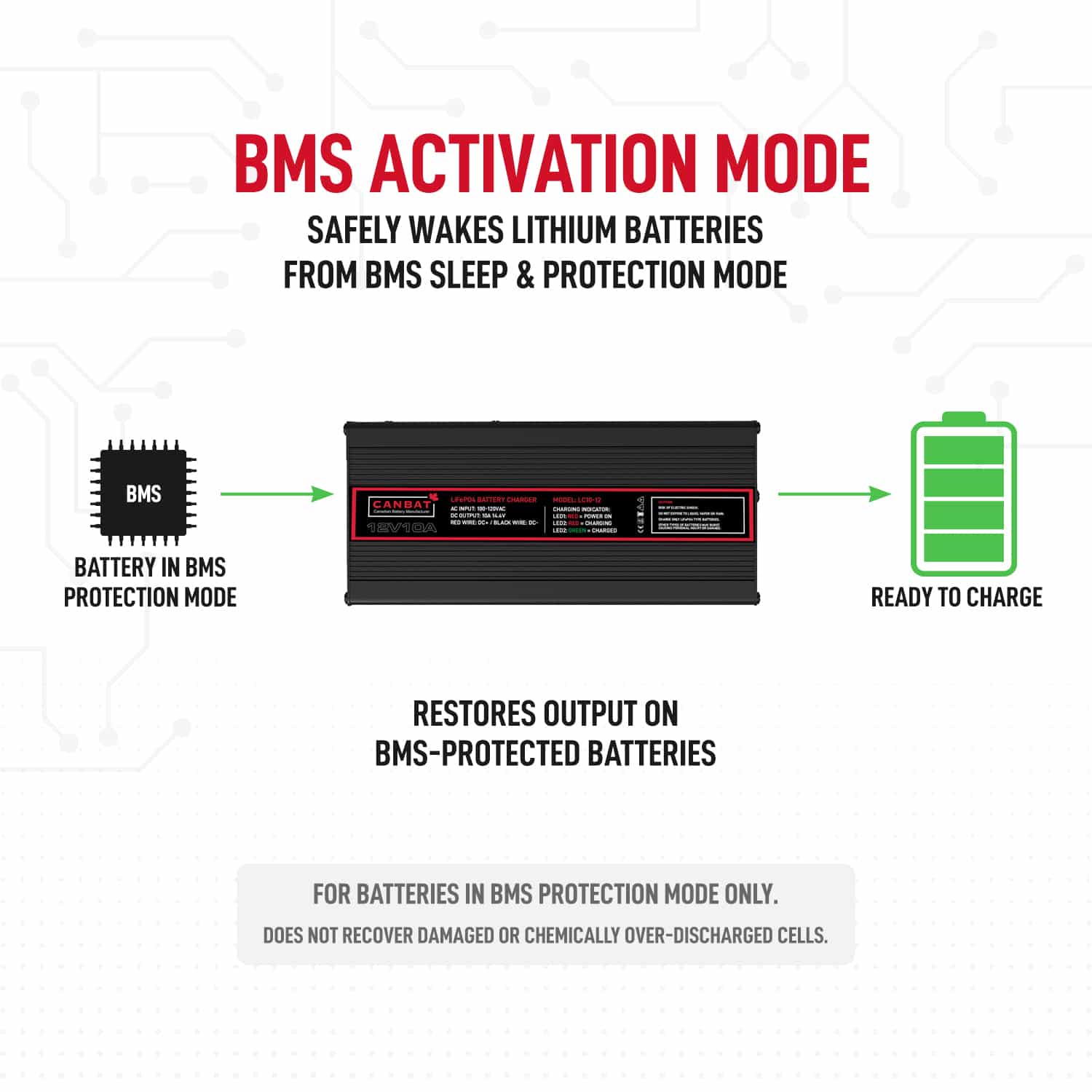

Maximize the life of your LiFePO4 battery using the Canbat’s dual-step charging algorithm charger, engineered to get the best out of your 12V lithium battery. The LiFePO4 battery charger gives the battery the right amount of power it needs to ensure the health, performance, and longevity of your lithium battery. Designed with CC/CV charge stages and a bulk voltage of 14.4V to ensure a balanced and fully charged LiFePO4 battery. Resets and charges lithium iron phosphate batteries after a BMS 0V protection trigger. Highly efficient, fully automatic, and simple to use with easy-to-read LED indicators.

QUALITY & SAFETY

All Canbat 12V LiFePO4 battery chargers are designed to the highest safety standards with protections against output over-voltage, output short-circuits protection, output over-temperature protection, and reverse polarity connection protection. Use Canbat chargers at home, at your shop, or in your vehicle with peace of mind. The charger is constructed with aluminum alloy with surface oxidation treatment, high hardness, and anti-oxidation. Integrated cooling fan for efficient ventilation and cooling.

EVERYTHING INCLUDED

No need to purchase additional charger leads or accessories. The Canbat 10A 12V lithium charger comes with everything you need to charge any size LiFePO4 battery. Easily swap charger leads using the included Anderson Connectors. Here’s the full list of what’s in the box:

12V 10A charger

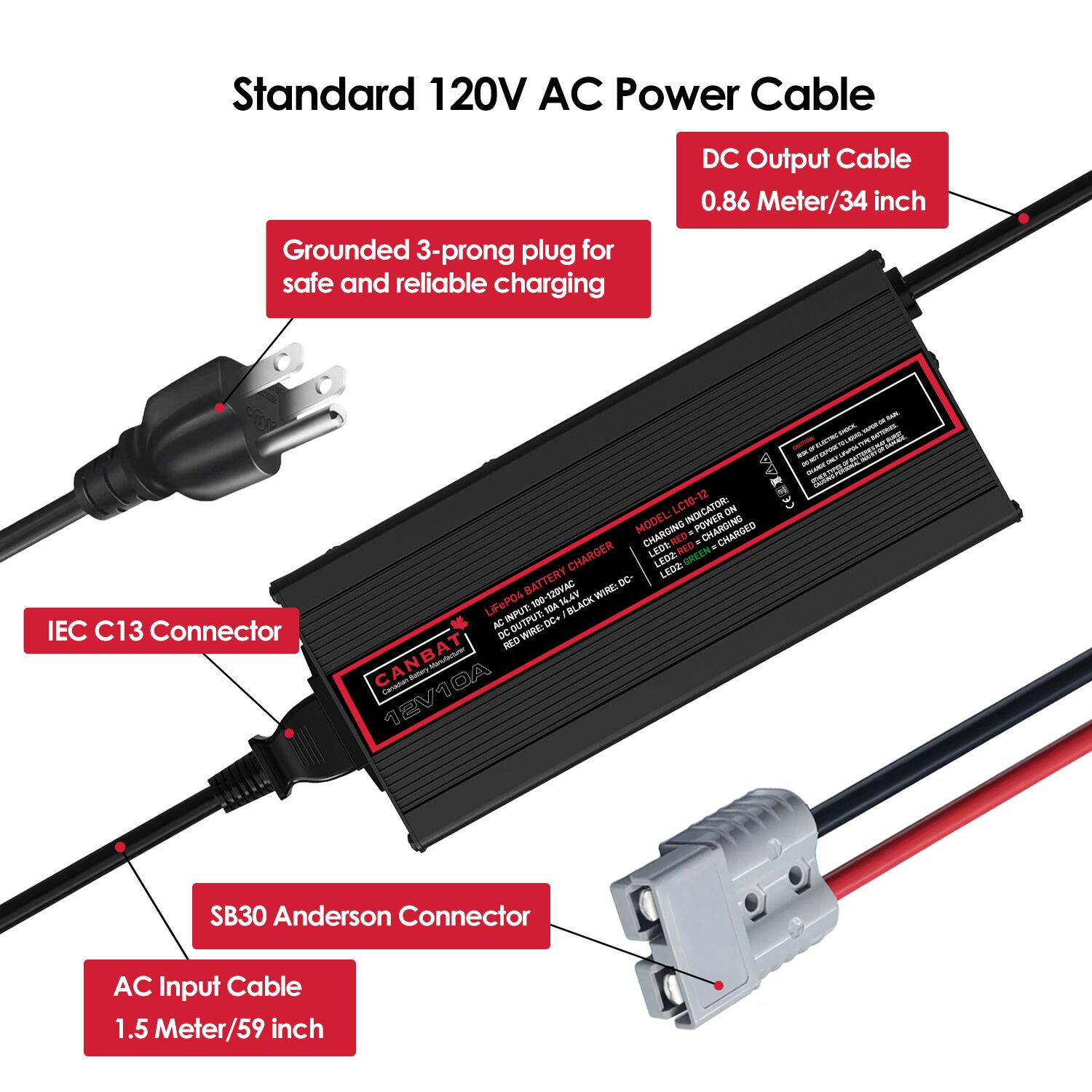

AC power cord

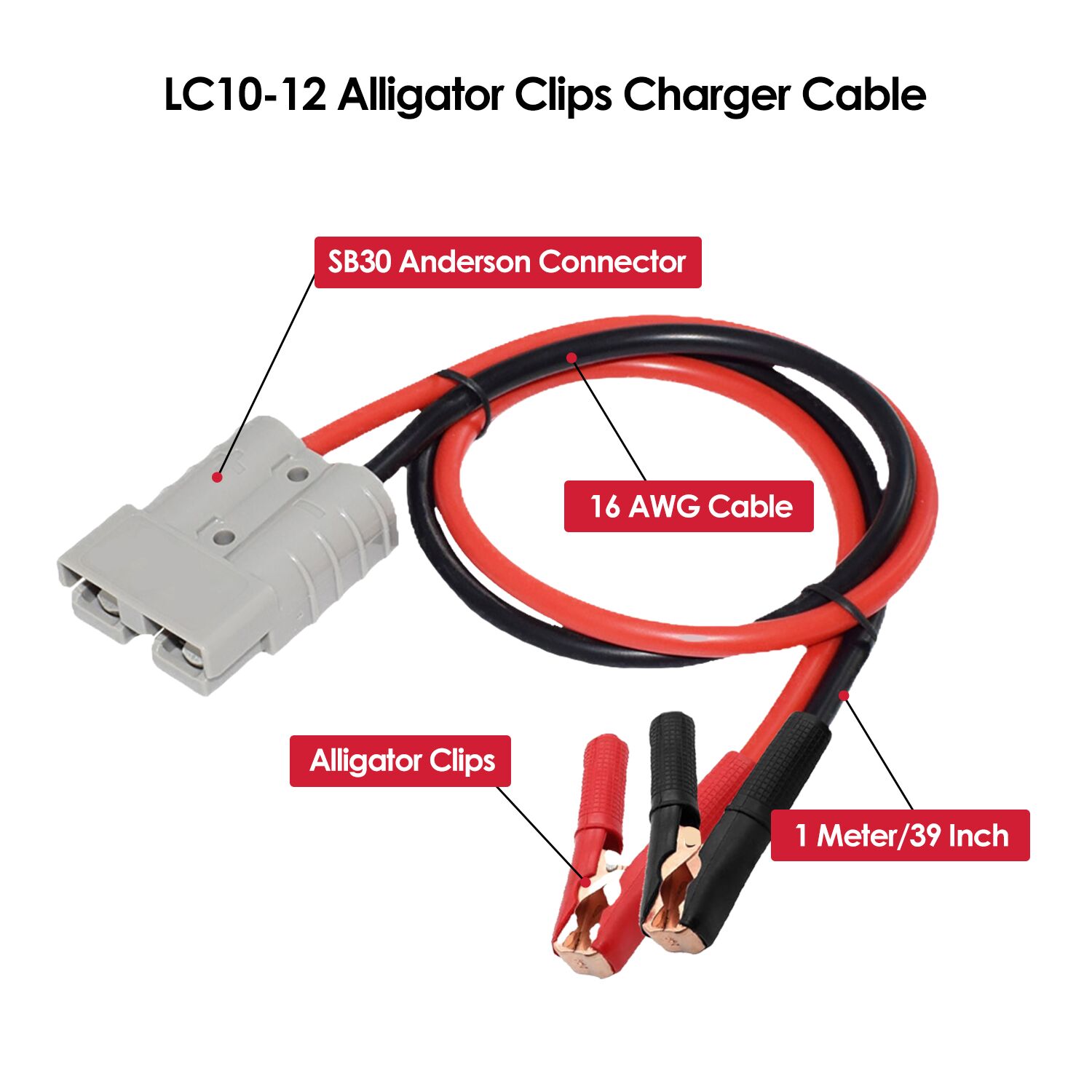

Aligator clips

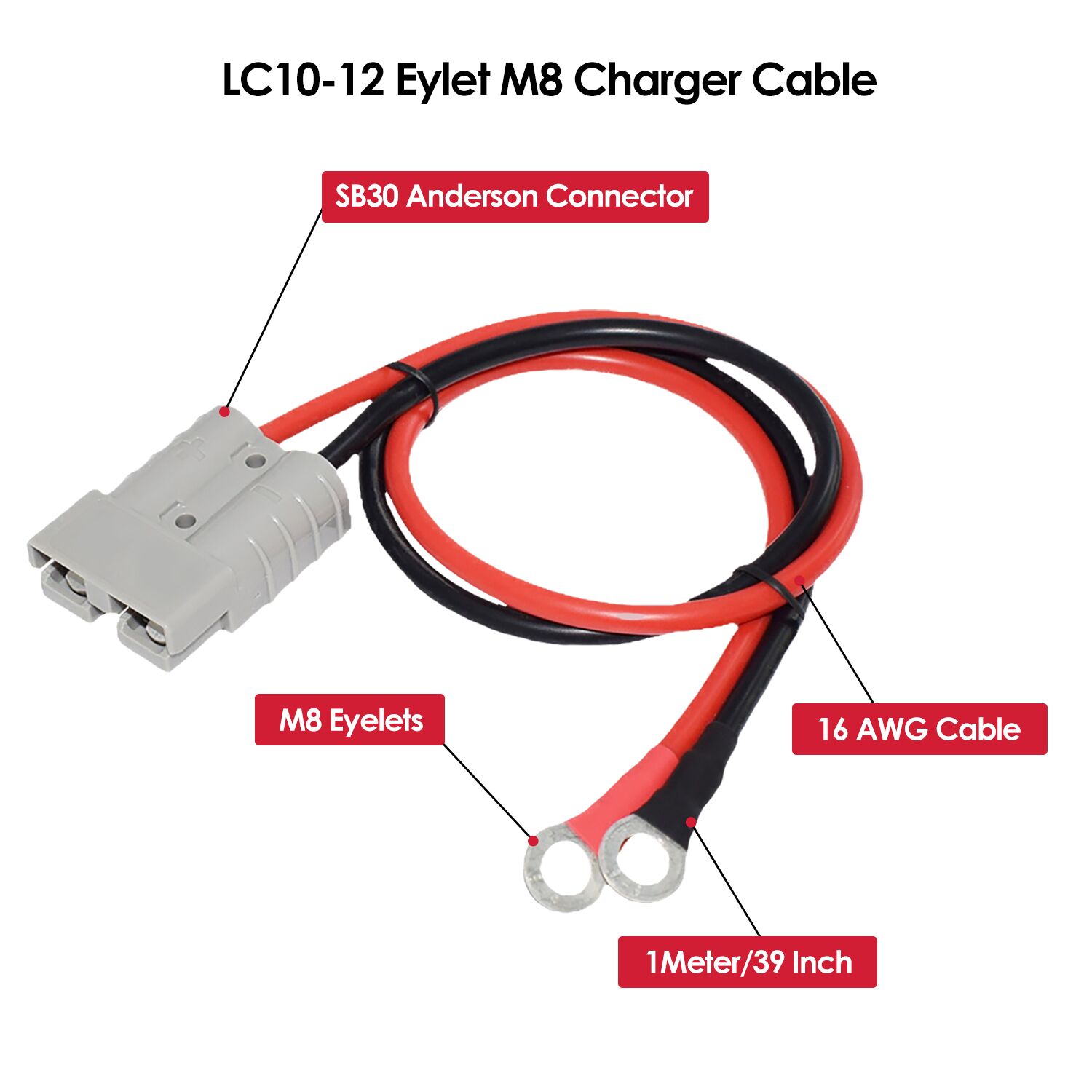

M8 eyelets
Extra fuse

IP22 Charger 12V 10A Lithium Battery Charger

The LC10-12 is a 10A 12V smart IP22 charger, which makes it ideal for indoor and outdoor charging. Lithium IP22 chargers are not waterproof and require ventilation when in use. They have a high-efficiency rate of over 96% and are equipped with forced ventilation utilizing fans.

FAST CHARGER

One of the main advantages of LiFePO4 batteries is that they are able to recharge much faster. With the Canbat highly efficient 12V 10A battery charger, this is how long it’ll take to recharge your battery:

Battery Model	Battery Size	Time to charge (Hours)
CLI40-12	12V 40Ah	4
CLI50-12	12V 50Ah	5
CLI60-12	12V 60Ah	6
CLI75-12	12V 75Ah	7.5
CLI100-12	12V 100Ah	10

The Canbat 10A lithium battery charger will also be able to recharge batteries with a higher capacity than the above, but if your battery is higher than 100Ah, we do recommend a larger charger in order to minimize charging time. Canbat offers the largest selection of LiFePO4 chargers in Canada. If you have any questions, feel free to give us a call or chat with one of our 24/7 available battery charger experts.

Additional Information

Canbat IP22 Lithium Battery Charger	Charger Model
	LC6-12	LC10-12	LC15-12	LC20-12	LC40-12	LC100-12	LC3-24	LC7-24	LC12-24	LC25-24	LC8-36	LC18-36	LC8-48	LC15-48	LC30-48
Input voltage range	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac	90-125Vac
Output voltage	12 VDC	12 VDC	12 VDC	12 VDC	12 VDC	12 VDC	24 VDC	24 VDC	24 VDC	24 VDC	36 VDC	36 VDC	48 VDC	48 VDC	48 VDC
Charge current	6	10	15	20	40	100	3	7	12	25	8	18	8	15	30
Efficiency	96%	96%	96%	96%	96%	96%	96%	96%	96%	96%	96%	96%	96%	96%	96%
No load power consumption	5W	4W	4W	10W	10W	20W	4W	10W	4W	5W	5W	5W	4W	5W	20W
Frequency	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz
Charge voltage	14.4V	14.4V	14.4V	14.4V	14.4V	14.4V	28.8V	28.8V	28.8V	28.8V	43.2V	43.2V	57.6V	57.6V	57.6V
Charge algorithm (CC/CV)	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage	Two-Stage
Can be used as power supply	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Protection	Shortcircuit - overvoltage - over-temperature - reverse polarity
Operating temp. range	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)	(-10℃ ~ 45℃)
Humidity (non-condensing)	5%~95%
Enclosure
Material & Colour	Aluminum (Black)
Connectors Included	M8 Eyelets and Aligator clips
Connector Type	Anderson Connectors
120 VAC connection	NEMA 1-15 plug
Protection Category	IP22
Weight (KG)	0.56	0.75	0.80	1.14	2.70	12.50	0.58	0.75	1.05	1.71	0.97	1.65	0.99	1.67	4.10
Weight (lb)	1.2345886672	1.653466965	1.763698096	2.5132697868	5.952481074	27.55778275	1.2786811196	1.653466965	2.314853751	3.7699046802	2.1384839414	3.637627323	2.1825763938	3.6817197754	9.038952742

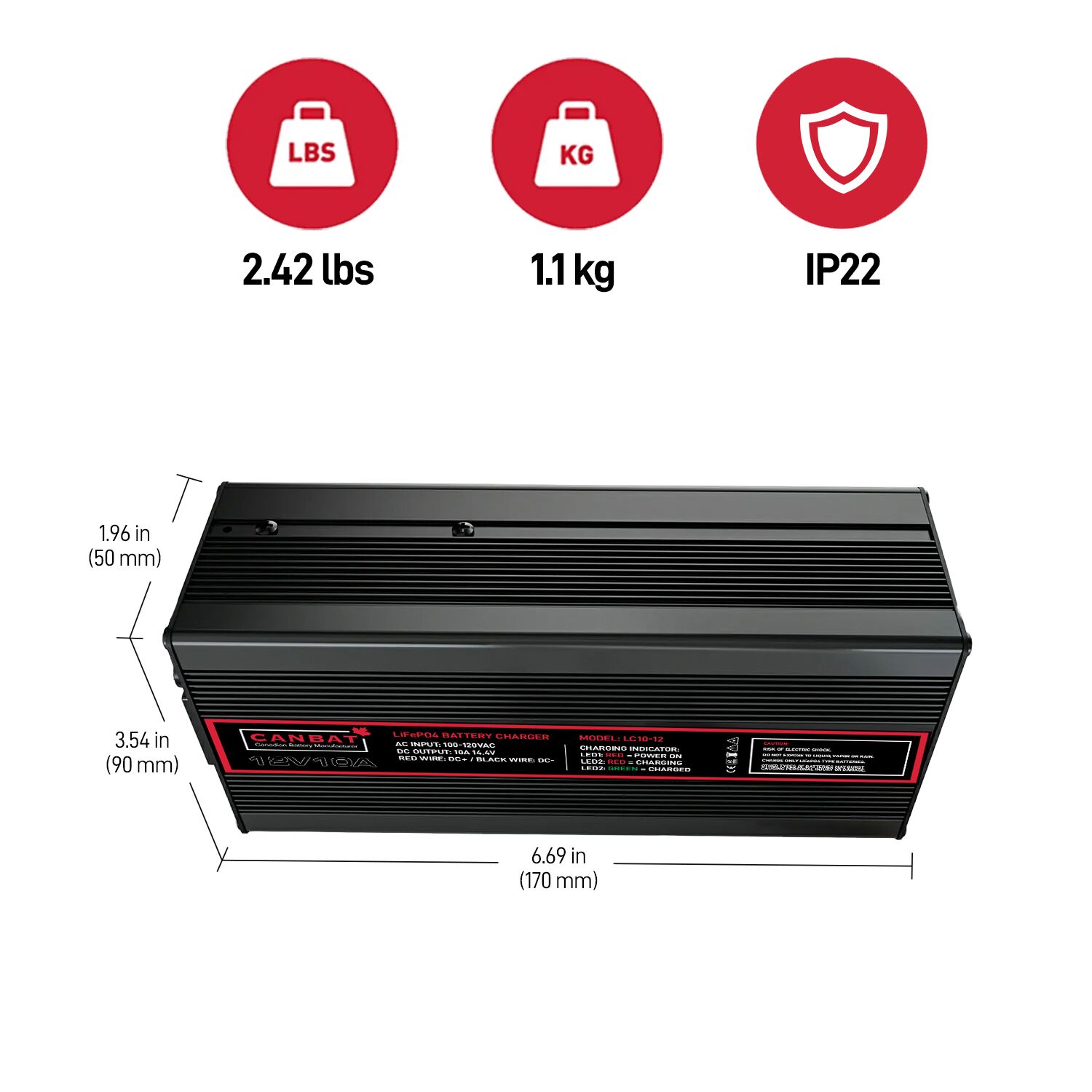

Dimensions (mm)	135x90x50	170x90x50	170x90x50	170x90x60	230x135x70	365x330x140	135x90x50	170x90x50	170x90x60	210x120x70	170x90x60	210x120x70	180x90x60	210x120x70	260x175x115

Warranty

This LiFePO4 battery charger has a 5-year limited warranty. This limited warranty covers defects in materials and workmanship in this product and lasts for five years from the date of the original purchase of this product. To claim a warranty, the customer must return the product together with the receipt of purchase to the point of purchase. This limited warranty does not cover damage, deterioration, or malfunction resulting from alteration, modification, improper or unreasonable use or misuse, neglect, exposure to excess moisture, fire, improper packing, lightning, power surges, or other acts of nature. This limited warranty does not cover damage, deterioration, or malfunction resulting from repairs attempted by anyone unauthorized by Canbat Technologies Inc. to make such repairs. Non-compliance with the instructions in this manual will render the warranty void. Canbat Technologies Inc. is not liable for any consequential damages arising from the use of this product. The maximum liability of Canbat Technologies Inc. under this limited warranty shall not exceed the actual purchase price of the product.
