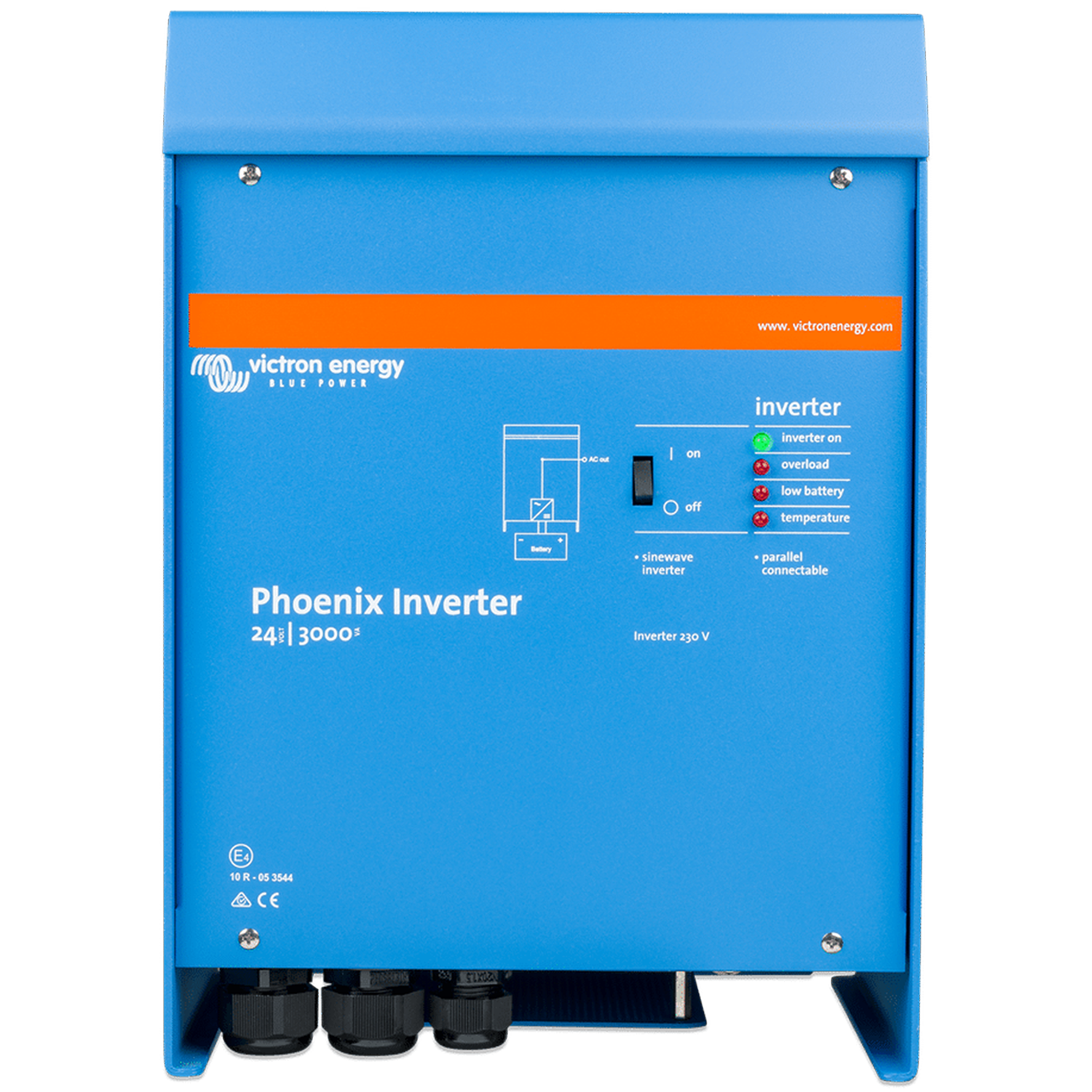

The Victron Energy Phoenix 24V 3000w Inverter is a 3000VA 120V AC inverter that is designed for both residential and professional use.
Programmable relay: YES
Protection: a – g
VE.Bus communication port: For parallel and three-phase operation, remote monitoring and system integration
Remote on-off: YES
Common Characteristics : Operating temperature range: -40 to +50 oC (0 – 120°F) , Humidity (non condensing): max 95%
Common Characteristics : Material & Colour: aluminum (blue RAL 5012) Protection category: IP 21
Battery-connection : 2+2 M8 bolts
|Part Number: PIN123020100|
|Length: 363.2 mm (14.30 inches)|
|Width: 259.08 mm (10.20 inches)|
|Battery Height: 218.44 mm (8.60 inches)|
|Approx Weight: 17.24 kg (38 lbs)|
|Input voltage range (V/DC): 19– 33V|
|3000 VA continuous output, 2500 Watts at 120 Volts 60 Hz|
|Download Product Specifications|
SinusMax – Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is its very high start-up power. Conventional high-frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel 3-phase and split phase operation capability
Up to 6 units of inverters can operate in parallel to achieve higher power output. Six 24/3000 units, for example, will provide 15 kW / 18 kVA output power. Operation in 3-phase or split phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3- USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from our website, the parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.
VICTRON ENERGY 24V 3000W INVERTER APPLICATIONS
- Recreational vehicles RV
- Renewable energy
- Street lighting
- Reserve power
- And many more…
