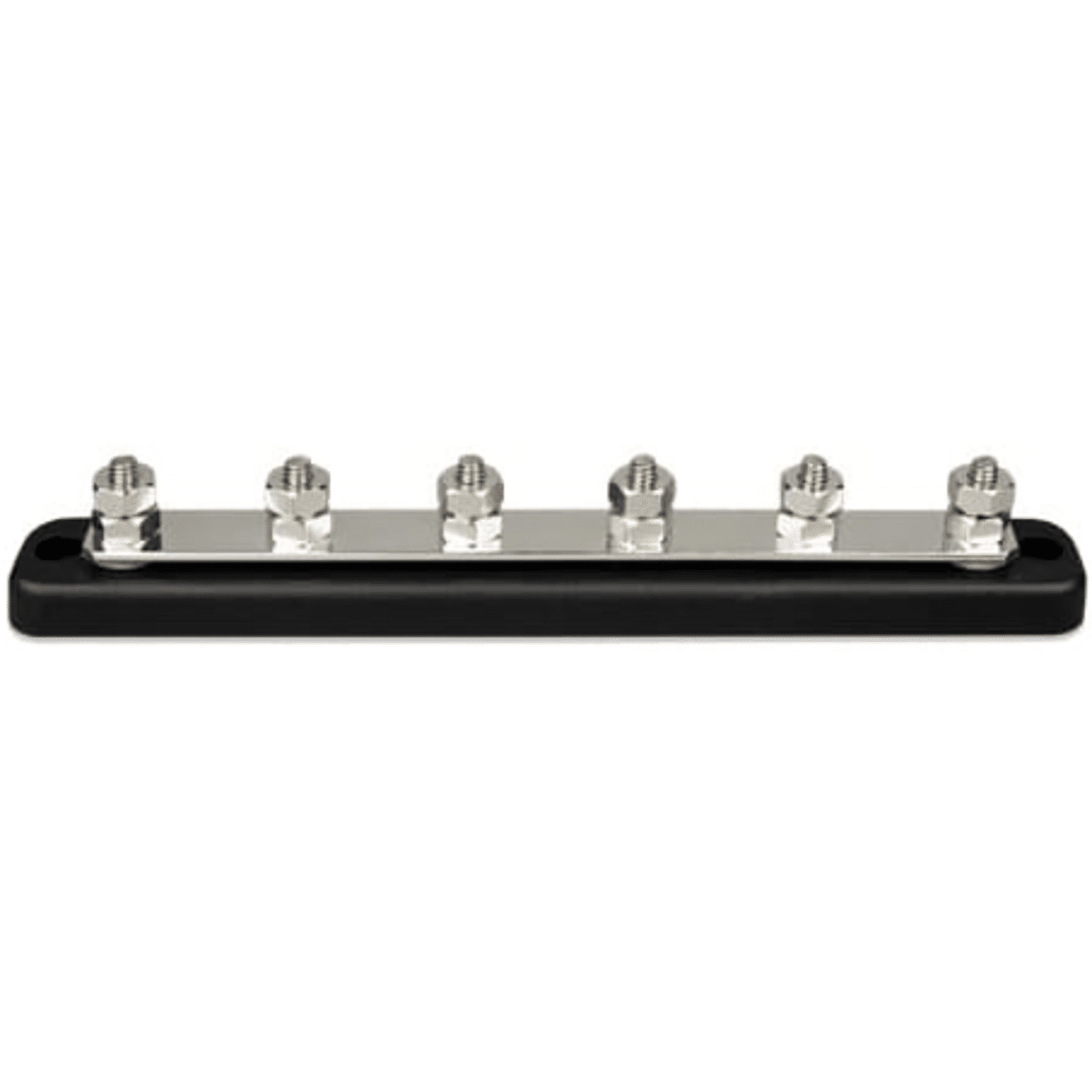

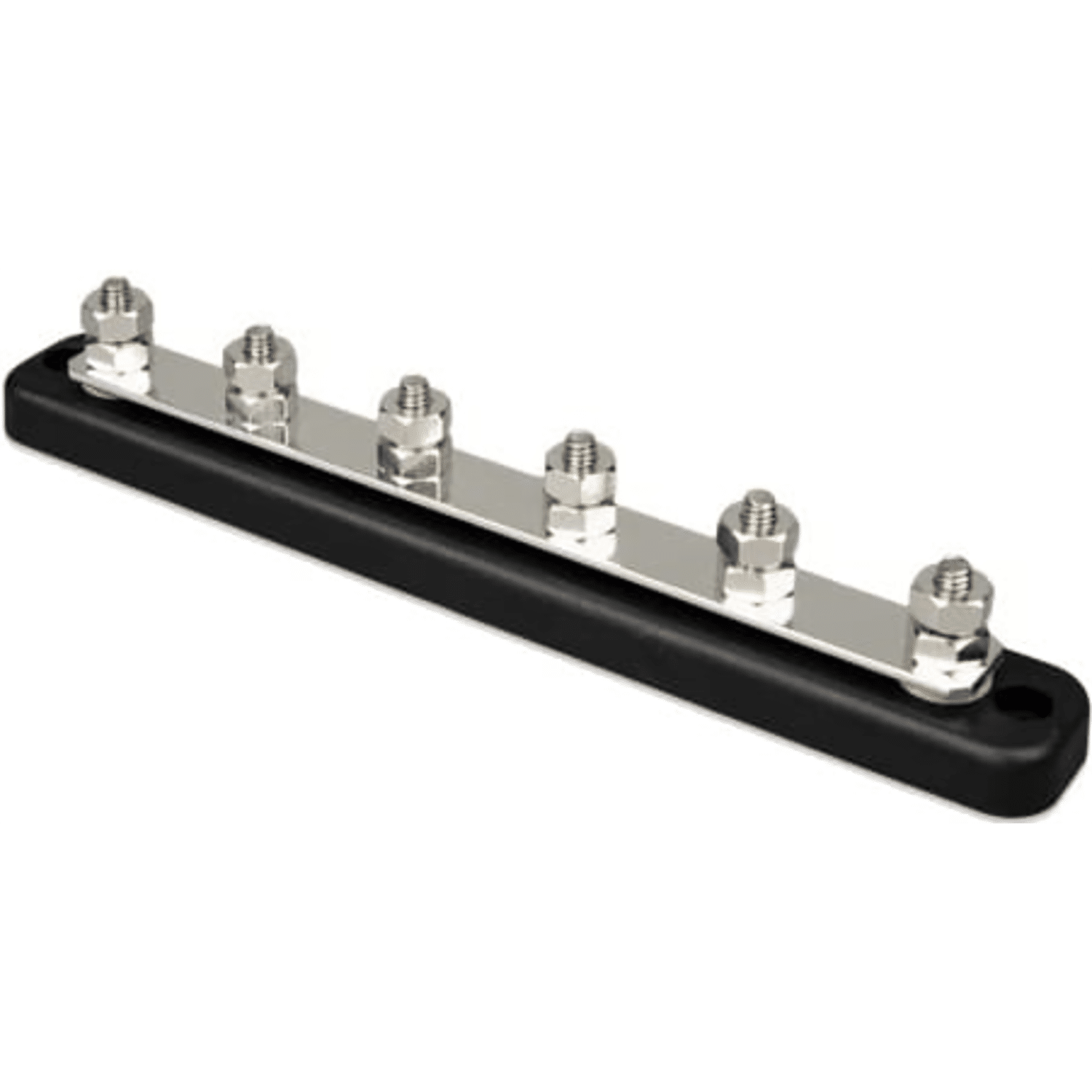

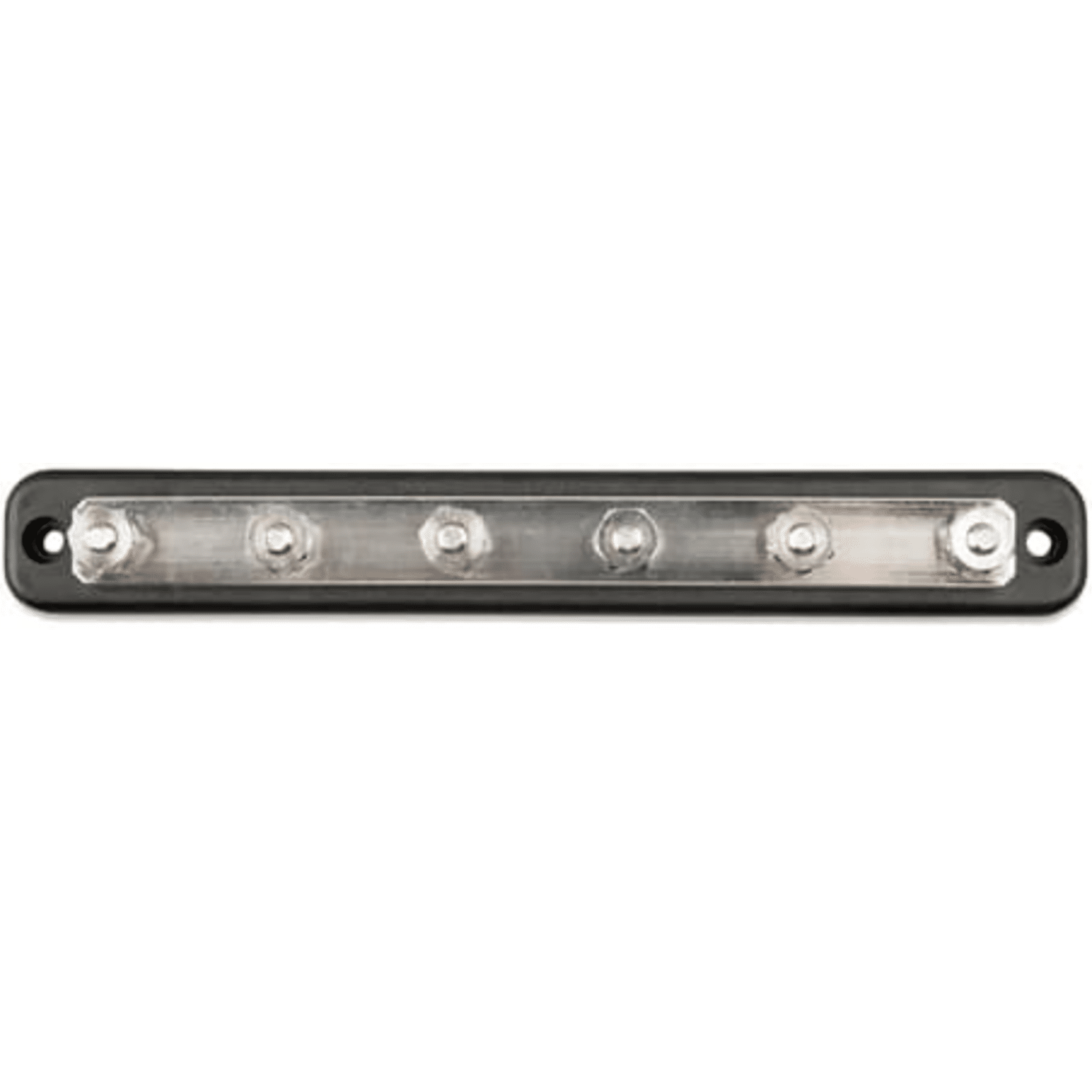

150A battery busbar – 6 terminal connections with cover

Description

Canbat offers a number of busbars with different current ratings to ensure you have what you need for a perfect setup. In addition to this, if you have a large number of connections, we have busbars with up to 6 connection terminals. This 150A battery busbar has 6 connection terminals and comes with a removable protective cover.

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. They can be used to consolidate both positive and negative wires. This busbar uses tin-plated copper versus traditional brass-plated copper allowing for maximum conductivity while avoiding corrosion in the process.

150A Busbar – 150 Amps / 70V busbar with 6 M8 connections

Key Features

• Custom stainless steel studs, nuts, and washers for optimal corrosion resistance especially for recreational and marine DC battery install

• Tin-plated copper material provides maximum conductivity, reduction in heat, and overall improved efficiency

• Busbar base material is fiber-reinforced for strength and resistance to ensure high performance in extreme temperature conditions

• Custom gaps between terminal connections allowing for an optimized fit of multiple system components

• Common interconnection heights for easy combining of multiple products using link plates

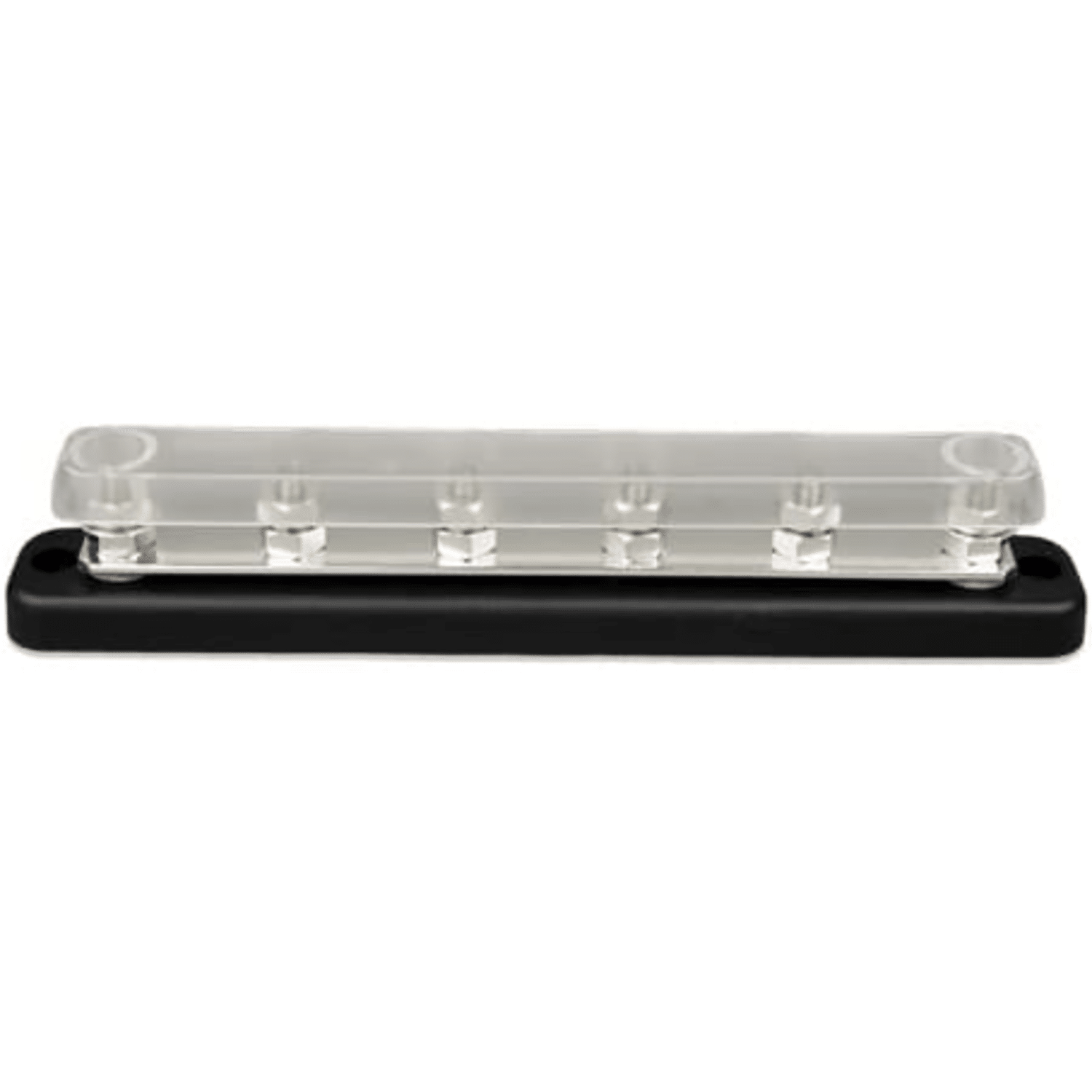

• Strong transparent covers with breakouts to allow easy wire access from any busbar direction

• Dual mirrored cable lug connections with smart design

• Top locked covers for easy component access and connection

If you would like to learn more about this 150A busbar by Victron Energy, you can download the datasheet here.
